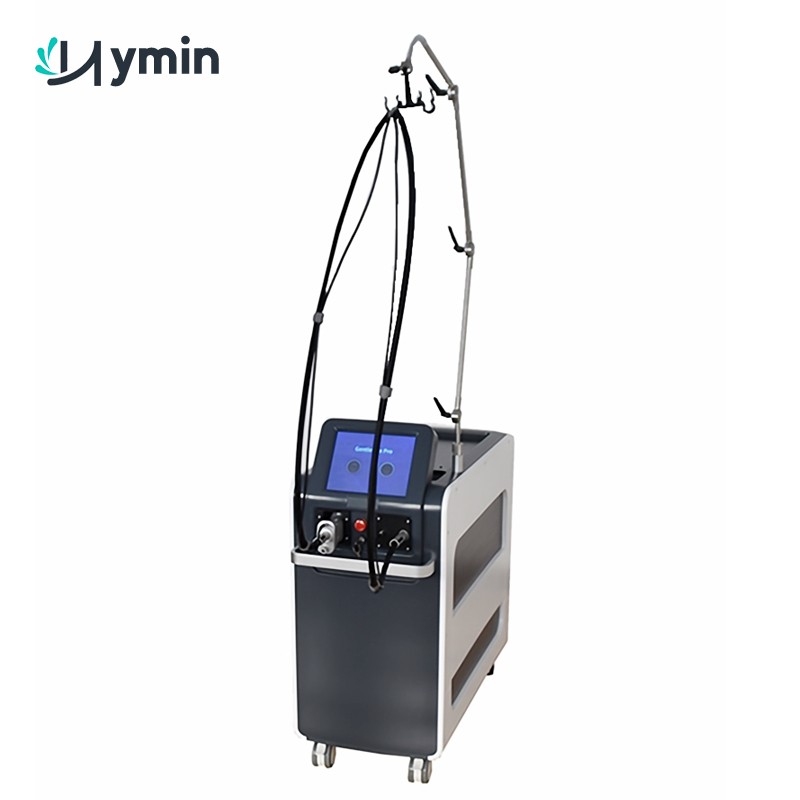

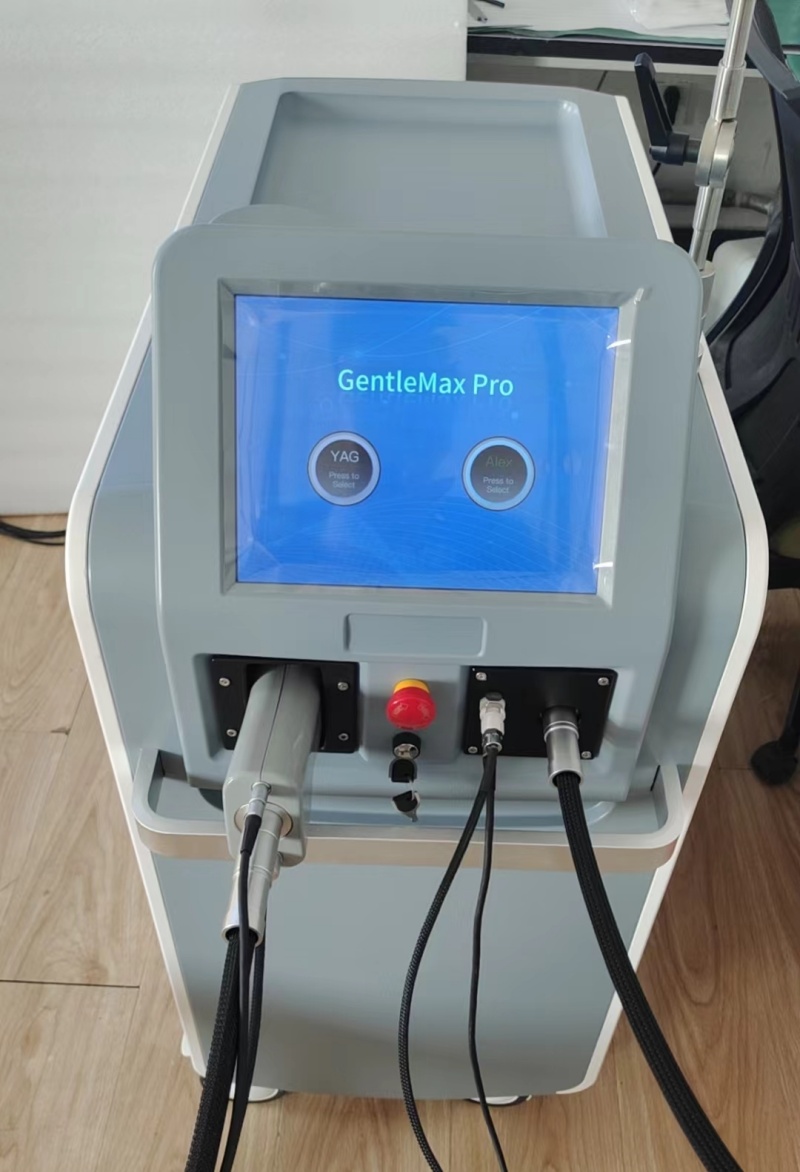

Gentle hair removal alexandrite laser 755nm 1064nm long pulse nd yag laser

Working principle of Long pulsed nd yag laser hair removal system

The principle of Nd yag laser long pulse treatment is based on the selective photopyrolysis effect. After the huge energy of laser is absorbed by hair follicles, blood vessels, tinea thyroid, acne and fat, the temperature rises sharply, resulting in the destruction of hair follicles, hemoglobin, bacteria, lipids and other tissues, and the loss of the original environment of hair, the coagulation of hemoglobin, sterilization, fat dissolution, and the effect of increasing skin collagen.

Features of long pulsed nd yag laser machine

1. 755nm and 1064nm dual wave available
2. Light output: 5 million shots.
3. 3-24mm to adjust the spot size
4. DCD dynamic cooling device(optional)+ ACC air cooler(optional).
5. United States imported optical fiber, 3mm, the transmission of energy through optical fiber is more stable.
6. High stability, inside of the handle is a fibrous material with good laser transmission.

Applications of long puled nd yag laser system

• Hair removal

• Acne reduction

• Onychomycosis reduction

• Vascular reduction

• Skin rejuvernation and firming

• Hemangiomas reduction







Before and after treatment of long pulsed nd yag laser system

Technical parameters

Laser type fiber laser, nd yag laser

Beam delivery lens coupled optical fiber

Display : 10.4 inch touch display screen

Wavelength:755nm 1064nm

Pulse width: 0.25ms-100ms

Max output power 100J(1064nm)   60J(755nm)

Spot diameter: standard 3mm  12mm  16mm

                         optional 6mm  10mm   18mm  24mm

Laser power: 2KW long pulse laser power supply

Skin cooling sytem: DCD(optional) ACC(optional)

Indicator light: 532nm green light

Frequency: 0.5Hz-10Hz

Lifespan: 5 Million shots

Fiber diatmeter: 3mm

Fiber laser: 3mm*2m

Cooling system: closed water circulation and large area cooling system
