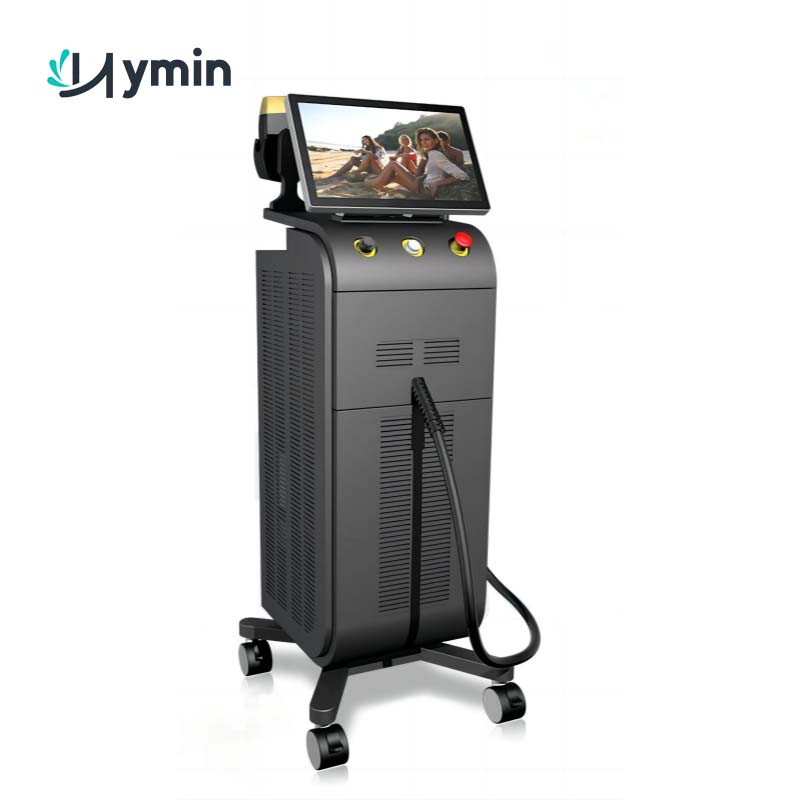

Multiwavelengths 755nm 808nm 1064nm diode laser hair removal

DIODE LASER HAIR REMOVAL THERAPY :

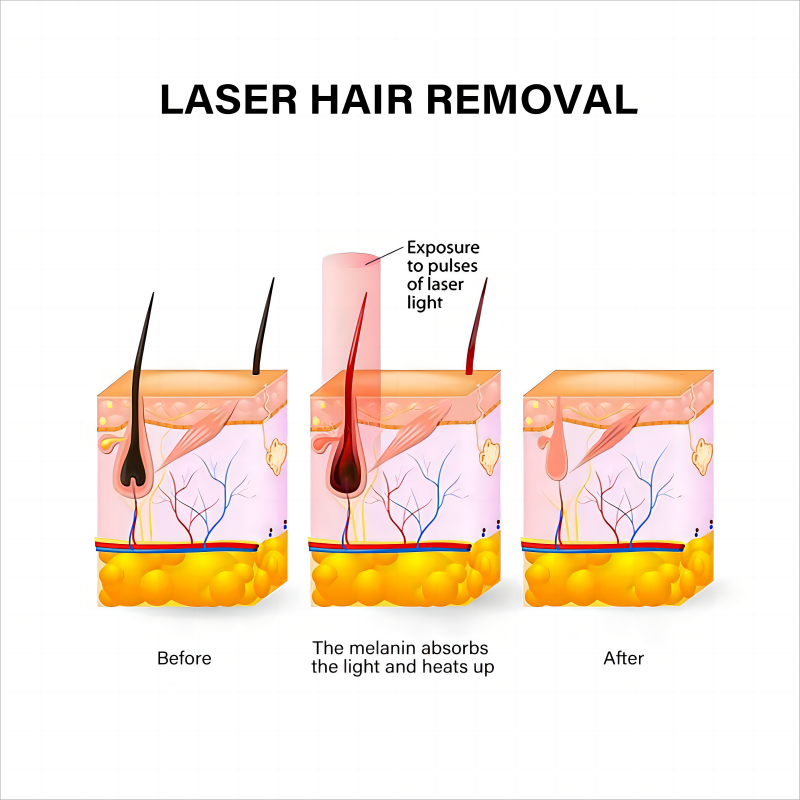

Diode laser hair removal technology is based on the selective dynamics of light and heat.The laser light can be absorbed by hair follicles in the melanin, and converted into heat, thus increasing the hair follicle temperature. When the temperature raises high enough to irreversibly damage the hair follicle structure, which disappear after a period of natural physiological processes of hair follicles and thus achieve the purpose of permanent hair removal.    Painless, Easy operation, Safe.

755 nm for fair skin and light hair hair removal .

808 nm suitable for for a wide range of skin types and hair colors

1064 nm suitable for dark skin  hair removal .

940 nm its penetration depth that makes it suitable for treating all hair types. Melanin absorption is low, making it very safe for working with dark skin types.

DIODE LASER HAIR REMOVAL MACHINE ADVANTAGES:

1. Stable and high power Coherent laser bars module

2 Italy imported water pump with better cooling system and more quiet

3 Six way power supply,much higher and stable output

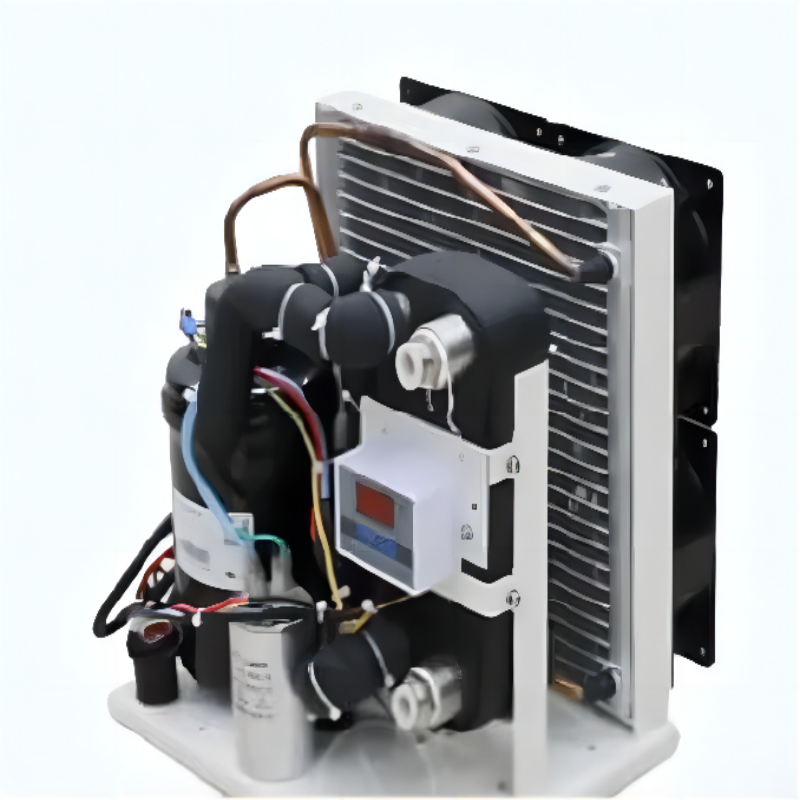

4 TEC cooling system can control water temperature, running continuously within 36 hours continuously

TECHNICAL PARAMETERS OF DIODE LASER HAIR REMOVAL MACHINE:

Output power 2500W-3500W

Laser Power 600W,800W,1200W,1600W,2400W

LCD screen 15.6 inch touch screen

Wavelength 755nm+808nm+1064nm+940nm

Handpiece life 20-40 millions shots

Frequency 1-10Hz

Max energy  120J/cm²

Pulse duration 5-300ms,5-100ms

Spot size 12*12mm²/12*18mm²/10*20mm²/12*28mm²/12*35mm²/20*35mm²

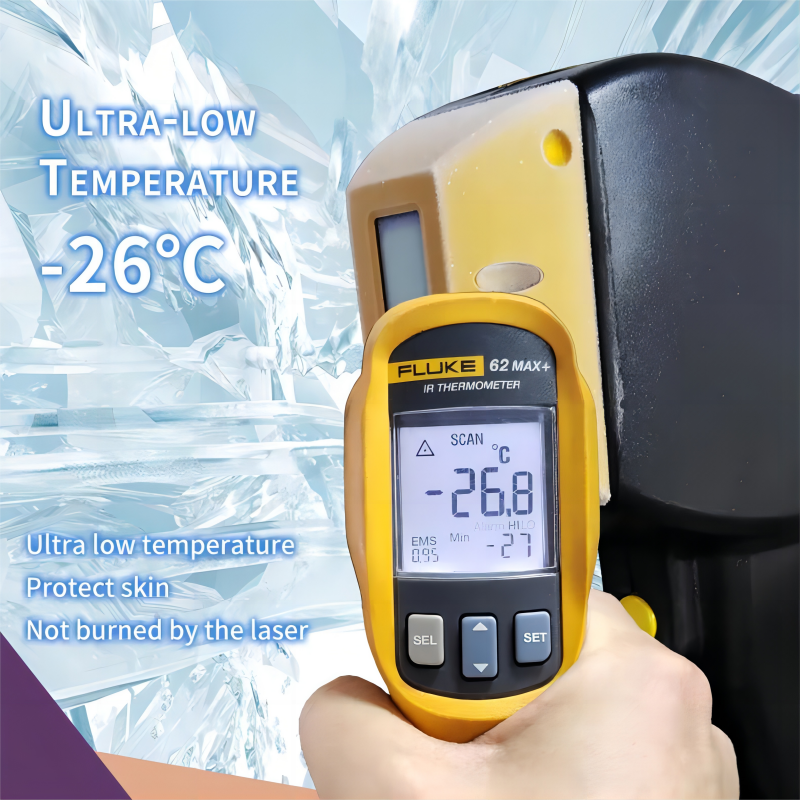

Cooling system Semiconductor cooling+air cooling+water cooling

Crystal temperature -25℃-0℃

Filters Built-in filters

Voltage AC 220~230V/50~60Hzor 100~110V/50~60Hz

 FEATURES OF DIODE LASER HAIR REMOVAL PLATFORM

1. stable and powerful laser module with USA brand Coherent bars .

2.Six way power supply replaced four way power supply, much higher and stable output

3. Single 808 wave, 755nm/808nm/1064nm double wave and triple wave for option

4. TEC cooling system keep diode laser machine running continuously within 36 hours

5. Various power laser modules for your option , 600W 800W 1200W 1600W 2400W

6.Good spareparts:double water filters PP filter and LON filter;  Italy imported water pump with better cooling system

BEFORE VS AFTER TREATMENT OF LASER HAIR REMOVAL PLATFORM
